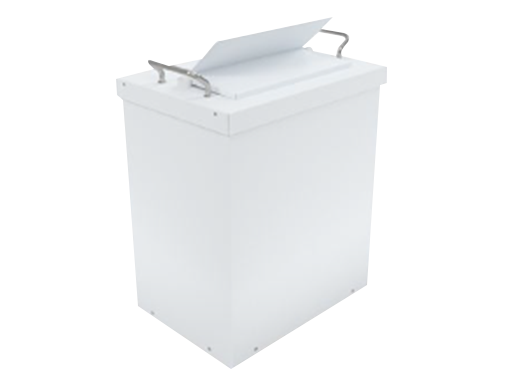

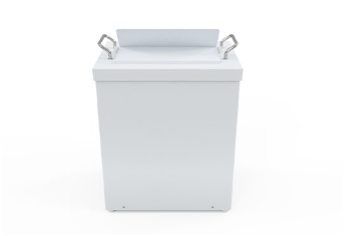

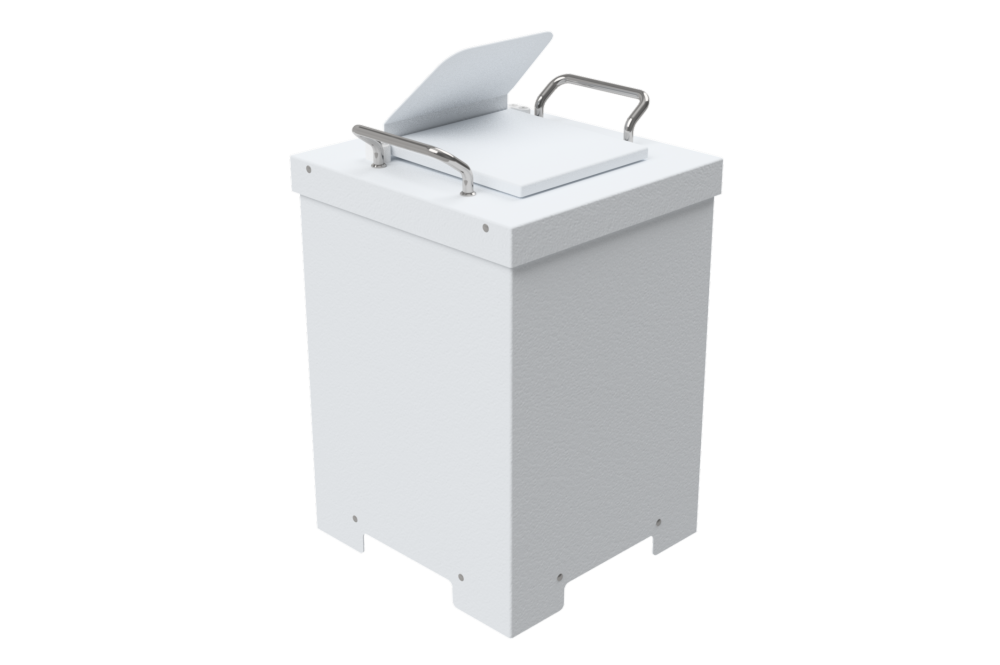

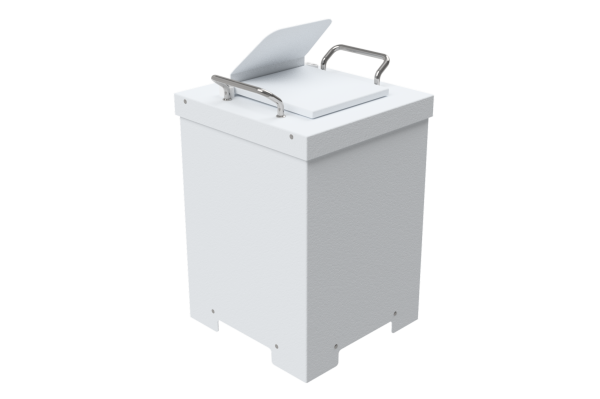

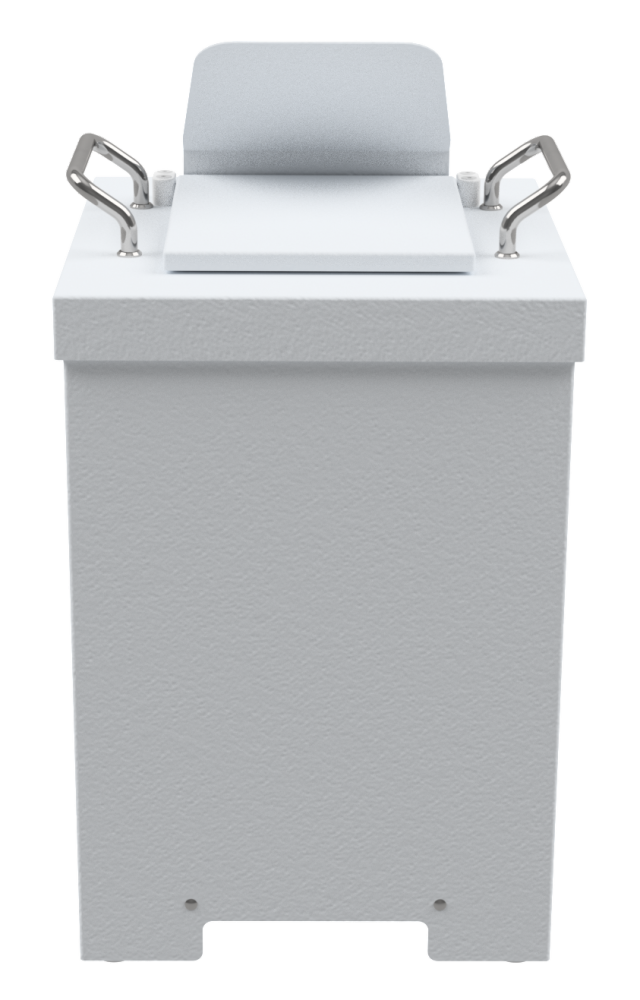

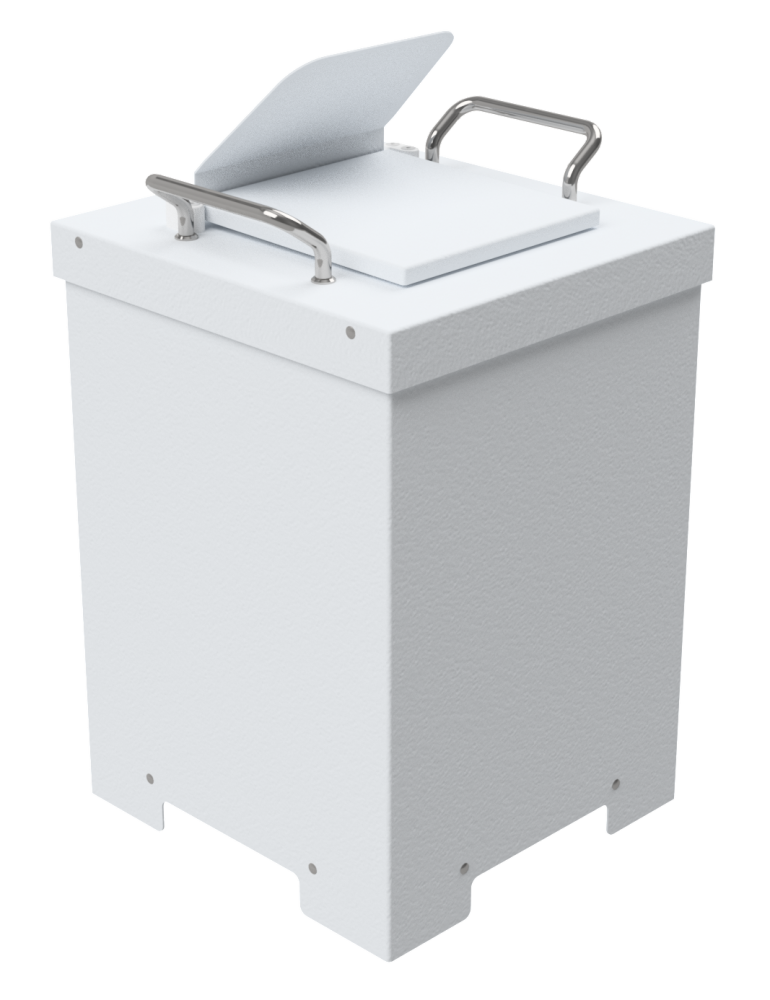

Our range of lead lined sharps shields comprises three basic sizes and a choice of two lead thicknesses, 3 mm or 6 mm. The shields are of steel construction with a lead lining. The outer surfaces have a durable epoxy stove enamel finish and inner surfaces are covered with a white plastic liner. The top is removable for exchanging of the disposable sharps insert. The top is fitted with a flip open lid to provide easy access to the opening in the insert. The lid can be operated with the back of the hand to avoid possible contamination.

Outer Case Mild steel (CR4) powder coated
Lead Rolled lead BSEN12588 Code 7 or Code 5
Liner Rigid plastic


*When ordering specify 3 mm or 6 mm lead*

Code Make Model Internal dimensions L x W x H (mm) External dimensions L x W x H (mm) Weight  (kg)
6BT.MBWC3SP60V3 Rexam Sharpak 60 Plus 240 x 240 x 241 284 x 284 x 378 22
6BT.MBWC6SP60V3 Rexam Sharpak 60 Plus 240 x 240 x 241 284 x 284 x 378   32
6BT.MBWC3SP120V3 Rexam Sharpak 120 Plus 290 x 280 x 341 334 x 324 x 478 32
6BT.MBWC6SP120V3 Rexam Sharpak 120 Plus 290 x 280 x 341 334 x 324 x 478 47
6BT.LBWC3SP220V3 Rexam Sharpak 220 Plus 340 x 330 x 391 384 x 374 x 553 43
6BT.LBWC6SP220V3 Rexam Sharpak 220 Plus 340 x 330 x 391 384 x 374 x 553  63
6BT.SBWC3SS5V3 Sharpsafe 5 Litre 200 x 240 x 271 244 x 284 x 416 21
6BT.SBWC6SS5V3 Sharpsafe 5 Litre 200 x 240 x 271 244 x 284 x 416 31
6BT.MBWC3SS7V3 Sharpsafe 7 Litre 200 x 240 x 361 244 x 284 x 506 25
6BT.MBWC6SS7V3 Sharpsafe 7 Litre 200 x 240 x 361 244 x 284 x 506  37
6BT.LBWC3SS24V3 Sharpsafe 24 Litre 250 x 490 x 356 294 x 534 x 509 45
6BT.LBWC6SS24V3 Sharpsafe 24 Litre 250 x 490 x 356 294 x 534 x 509 65
6BT.SBWC3DS2.5V3 Daniels 2.5 Litre 185 x 185 x 171 229 x 229 x 317 13.5
6BT.SBWC6DS2.5V3 Daniels 2.5 Litre 185 x 185 x 171 229 x 229 x 317 19.5
6BT.SBWC3DS5V3 Daniels 5 Litre 205 x 239 x 291 249 x 239 x 436 20
6BT.SBWC6DS5V3 Daniels 5 Litre 205 x 239 x 291 249 x 239 x 436 28
6BT.MBWC3DS7V3 Daniels 7 Litre 255 x 255 x 221 299 x 299 x 366 22
6BT.MBWC6DS7V3 Daniels 7 Litre 255 x 255 x 221 299 x 299 x 366 32
6BT.MBWC3DS11.5V3 Daniels 11.5 Litre 285 x 285 x 256 329 x 329 x 409 28
6BT.MBWC6DS11.5V3 Daniels 11.5 Litre 285 x 285 x 256 329 x 329 x 409 40
6BT.LBWC3DS24V3 Daniels 24 Litre 350 x 360 x 391 394 x 404 x 536 45
6BT.LBWC6DS24V3 Daniels 24 Litre 350 x 360 x 391 394 x 404 x 536

67
CUSTOM SIZES ARE AVAILABLE ON REQUEST
