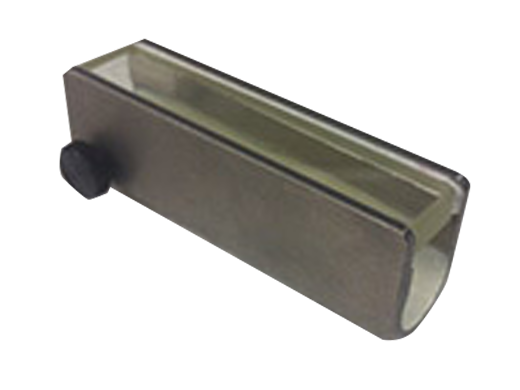

The Screw lock design incorporates the same Tungsten barrel as the Uni-Lock® 4 syringe shield however the screw lock mechanism allows for greater flexibility with different lengths of syringe.

Tungsten Barrel Minimum 2 mm wall thickness
Lead Glass Window 6-8 mm thick, 2mm Pb equivalent
Code Size Length (mm) Ext (mm) Int Ø (mm)
1BT-SL01A To fit 1 ml syringes 74 18 x 23 9
1BT-SL01B To fit 1 ml syringes 77 18 x 23 9
1BT-SL01L To fit 1 ml Luerlock syringe 75 18 x 23 13
1BT-SL02A To fit 2 ml syringes 53 18 x 23.50 13
1BT-SL02B To fit 2 ml syringes 59 18 x 23.50 13
1BT-SL03A To fit 3 ml syringes 65 18 x 23.50 13
1BT-SL03B To fit 3 ml syringes 68 18 x 23.50 13
1BT-SL05A To fit 5 ml syringes 60 21 x 27 16
1BT-SL05B To fit 5 ml syringes 65 21 x 27 16
1BT-SL10A To fit 10 ml syringes 75 22 x 30 18
1BT-SL10B To fit 10 ml syringes 85 22 x 30 18

*Please specify length when ordering
