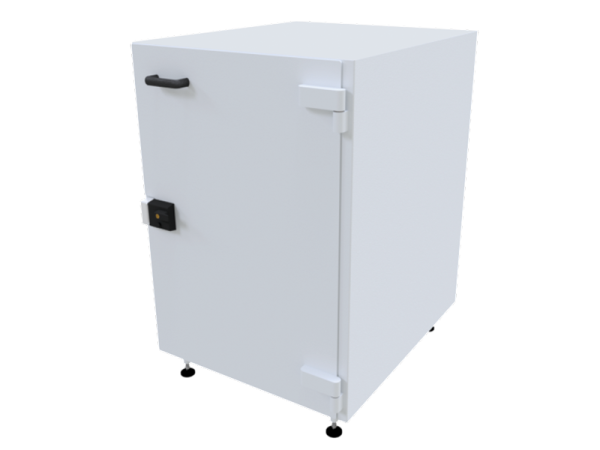

Lead lined cupboard to accommodate fridges with a choice of either 3 mm, 6 mm, 10 mm, 25 mm or 50 mm lead shielding. Cooling fans are also incorporated to prevent overheating. Customer to specify fridge/freezer size, and specifications.
| Code | Description | Shielding (mm Pb) | Internal Dimensions (L x W x D) (mm) | External Dimensions (L x W x D) (mm) | Approximate Weight (Kg) |
|---|---|---|---|---|---|
| 7BT-FS-03/3 | Lead Lined Refrigerator/Freezer Shield | 3 | 545 x 535 x 615 | 661 x 791 x 830 | 190 |
| 7BT-FS-03/6 | Lead Lined Refrigerator/Freezer Shield | 6 | 545 x 535 x 615 | 661 x 791 x 830 | 270 |
| 7BT-FS-03/10 | Lead Lined Refrigerator/Freezer Shield | 10 | 545 x 535 x 615 | 661 x 791 x 830 | 376 |
| 7BT-FS-05/25 | Lead Lined Refrigerator/Freezer Shield | 25 | 500 x 575 x 800 | 720 x 920 x 1150 | 1150 |
| 7BT-FS-05/50 | Lead Lined Refrigerator/Freezer Shield | 50 | 500 x 575 x 800 | 720 x 920 x 1150 | 2000 |
